SHU-PAK Solid Waste Collection SWP Unit 330 and 331

Last updated on Mar 21, 2023

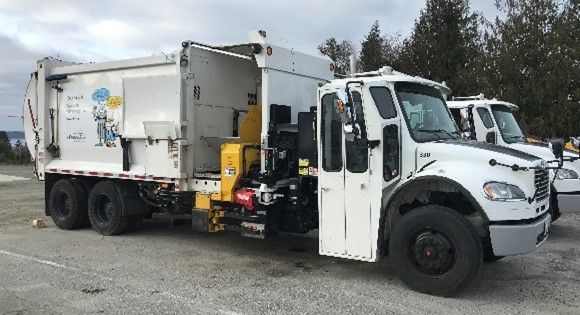

Summary: The Shu-Pak PKI Side Loading trucks are used for residential and civic solid waste collection. Solid waste is collected both manually and with the automated arm.

General

User must read and follow operator’s manuals.
User must be trained on the equipment and procedures by a qualified operator.
Appropriate PPE must be utilized.
Do not operate this equipment if fatigued or otherwise impaired.
Never disable or bypass safety equipment or other protective devices. Do not use unless these devices are fully functional.

The below could happen: Do this to minimize the hazards:

Hazards	Crush & Entanglement injuries	Controls & PPE	Safety knowledge – know & have operation manuals
	Unintentional work brake disengagement at pickup stops		Use specified puncture resistant gloves with tight fitting cuff.
	Vehicle roll away when parked		Place wheel chocks when parked.
	Hit by vehicles - working on /near roadways		High Visibility apparel
	Flying Debris / Eye Injury		Wear eye protection on the job.
	Slips Trips Falls		Safety footwear with adequate ankle support & grip
	Noise / Hearing damage		Hearing protection
	Musculoskeletal / Repetitive Strain Injuries		Safety knowledge – know lifting techniques & limits
	Extreme winter / summer conditions		Adequate cold / hot weather clothing and coverage
	Finding Dangerous Materials		Know hazards – explosives, aerosols & glass
	Overhead Electrical Line Contact		Follow overhead line SWP
	Aggressive dog encounters		Safety knowledge – know appropriate response
	Biohazards exposure		Safety education – know SWP’s and protections

Pre-trip as per Shu-Pak operator’s manuals and BC Motor Vehicle Act – document your inspection.

Check Equipment		Wheels should be chocked during pre-trip
		Ensure that people stand clear of crusher and packer panels during operation.
		Ensure area behind truck is clear of objects and people before opening tailgate.
		Ensure area around grabber arm is clear of objects and people before using
		If raising the packer body during equipment check, unit must be parked on level ground
		Always use safety prop if working under raised packer body.
		Ensure tailgate lock pins are securely in place before collecting garbage
		Use proper safe fuelling technique

Do this to protect yourself when performing the work:

Vehicle Operation	Maintain three-point contact when entering/exiting cab.
	Operate truck from right hand stand-up side only during collection of solid waste.
	Ensure that mirrors are adjusted properly
	Do not exceed 20 km/h when driving from right hand stand up side
	Watch for overhead lines – minimum overhead clearance of 3.89 m required
	Maintain limits of approach and follow overhead line SWP.
	Keep step clean and free of oil/grease
	Work at a steady, even pace
	Follow route maps
	Watch for materials that might explode – e.g. fluorescent light tubes, aerosol cans, propane cylinders, etc.
	Use a spotter if available when backing up
	If no spotter, follow best practices - vehicle walk-around, sounding horn, backing onto view-side
	Do not climb into hopper or packer - unit must be locked out/tagged per operator’s manual
	Eye protection is mandatory

Manual collection is heavy, repetitive work. Make sure you:

Manual Task Process	Do not step away from truck until it comes to a complete stop.
	Ensure that work brake is fully engaged before leaving cab
	Wear closed-cuffed gloves only to minimize risk of snagging work brake switch and disengaging it.
	Set parking brake if truck is on a hill or more than 10 feet from materials to be manually collected.
	Step carefully when leaving right hand stand-up side of truck – do not jump or leap from the vehicle.
	Avoid slips, trips and falls – watch for uneven or slippery surfaces.
	Ensure that grabber arm is fully retracted before collecting manually
	Use proper lift technique. Avoid over-reaching, twisting, etc.
	Adhere to 12 kg weight restriction for manual solid waste collection
	Are biohazard aware - follow safe garbage handling SWP and keep solid waste away from your body.

Automated Task	Maximum lift capacity is 204 kg (arm fully extended).
	User must ensure that nobody is near the vehicle before activating controls.
	User must be in full and clear view of the lifting arm at all times
	Never disable or bypass safety equipment or other protective devices
	Read and follow operator’s manuals

For dumping sequence and procedures, follow operator’s manual.

Post Process	Park on level ground ,chock wheels for daily chassis and hopper cleaning and parking.
	Follow daily hopper cleaning instructions in operator’s manual – lockout/tagout as directed
	Never go under open tailgate - use a long-handled brush or broom to clean from the side of vehicle.
	Use tailgate and body props as directed during cleaning
	Perform and document post-trip inspection
	Report any damages or deficiencies to Mechanics and Supervisor
	Report encounters with aggressive animals or persons to Supervisor
